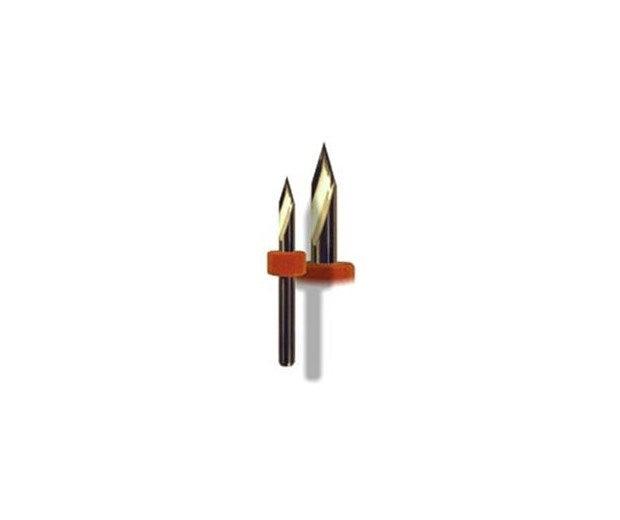

End Mills - Engraving
Specifications
Geometry - 2-flute, 4-flute, "V" point
Length - indicated ±0.010 in. (30° 1.50 in. ±0.010 in.)
Tip angle - nominal ± 0.5°
Shank dia. - 0.1250 in. (3.18 mm) 0.00, -0.0002 in.
Runout (TIR) /- 0.0002 in. max.
Max. depth of cut - EFL varies by tip angle
Anticipated Life - 6,000 linear inches (fiberglass, CNC milling)
Material - solid submicrograin carbide
Ring Set - 0.800 in. ± 0.002 in. (optional)
Operating RPM €“ CNC certified operation 20k RPM to 100k RPM
