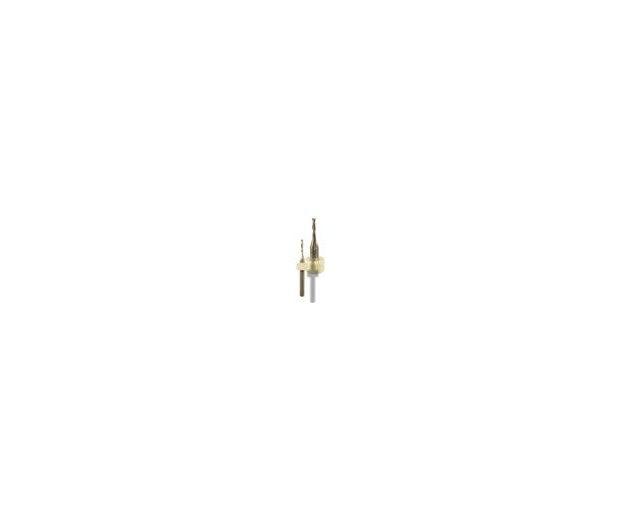

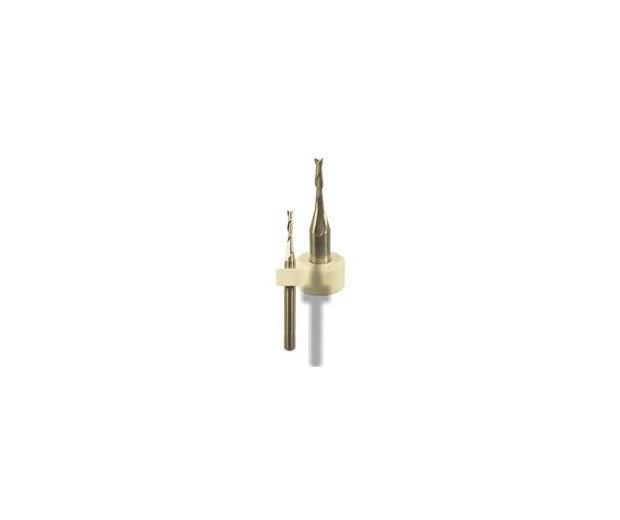

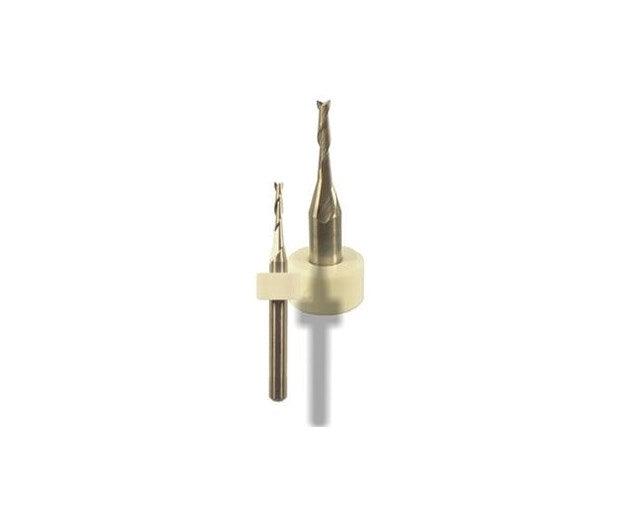

Geometry - 2 flute, 1/8 in. (3.18 mm) shank, fish tail point
Length - 1.5 in. ±0.010 in.
Diameter - nominal 0.0000 in., €“0.0020 in.
Shank dia. - 0.1250 in. (3.18 mm) 0.00, -0.0002 in.
Helix angle - 28° Runout (TIR) - ±0.0002 in.
Max. depth of cut - EFL varies by diameter ±0.005 in.
Anticipated Life - 6,000 linear inches (ebony, CNC milling)
Material - solid submicrograin carbide
Ring Set - 0.800 in. ±0.002 in. (optional)
Operating RPM €“ CNC certified operation 20k RPM to 100k RPM
